Automatic Weighing and Filling Machine, Weigh and Fill Machine

Technical Specifications:

Overall height: 5’8” (68”), occupies only 23”x 30” of floor space
Supply Hopper capacity: 3.5 cu. ft. (equivalent to 5 five-gallon pails)
Scale Total Weight: 135lbs.
Power Requirements: 2 amps, 120 volts 60Hz AC
Air Requirements: <0.25 cfm air supply at 30psi

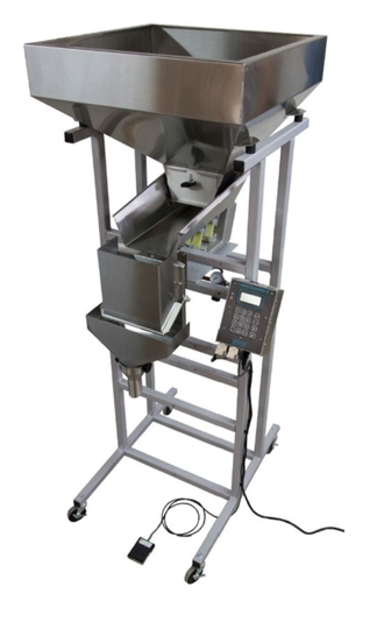

Automatic Weighing and Filling machine

The Model UN-S4 Automatic Weighing and Filling machine is a great first step to take your business from hand scooping to automation. Your bulk product is placed in the supply hopper at the top of the machine. It uses an electromagnetic vibratory feeder to move the product from the supply hopper to the weigh hopper where it is weighed. When the target weight is reached, the Controller stops the feeder, and the weigh hopper opens automatically or with the foot switch to dump your product into your container. After that a new fill cycle is started and your filled bag may now be sealed.

Here are some of the features it offers:

• Self-adjusting Controller
• Reads out to 1 gram or .001 lb
• Controller range up to 10lbs.
• Supply Hopper capacity 3.5 cu.ft. (equivalent to 5 five-gallon pails).
• Includes powder-coated chassis (stainless steel optional.)
• All product contact surfaces stainless steel
• Footprint 4.6 sq.ft., 68” high
• 120V 60Hz (wall outlet); (240V 50Hz optional)
• Handles any free-flowing dry bulk products
• Can be used with any bags or rigid containers
• Automatic tare adjustment
• Self-adjusting bulk & dribble speed control
• Up to 800 fills/hour

To find out more about this or any other new or used machine you might be looking for, feel free to call or email us and someone at U-Packaging will be happy to help you.
